Product description
A tiny and cozy and more spacious Camping Cabin with two extensions gives substantial space for all your belongings, both on a temporary or a permanent basis. The cabin with two extensions is a bigger and more spacious structure, thus it offers more liveable spaces that you can use as a storage area. These cabins are also good sources of campings. Three separate spaces make it possible to arrange the cottage to the living room, bedroom, and bathroom spaces.
This camping cabin can withstand winter weather and can offer you the perfect space to relax even in winter. Also is available to choose as an option insulated roof and floor for this cabin. Insulation: 5 cm thick stone wool. With an insulated roof and floor panels, the Camping cabin becomes more attractive for use 2-both in summer and winter. In the summer season, the insulation keeps the heat off and the cabin does not heat up. During the winter, the insulation does not release the heat out.
- Specification
- Standard set
- Video
- Delivery
- Foundation
- Painting
- Options
- Accessories
- Usage and Maintenance
| People | 2-4persons |
| Timber | Spruce |
| Shape | Hexagon + 2 Rectangles |
| Room | 3 |
| Inside area | 17.2m2 |
| Total height | 3062mm |
| Wall height | 1155mm |
| Floor thickness | 18mm |
| Roof thickness | 18mm |
| Wall thickness | 45mm |
| External dimension | 8150 x 4430mm |
| Door size | 782 x 1630mm |
| Window size | 880 x 510mm |
| Wooden walls, floors, roof panels; |
| Roof covered with bitumen shingles of your selected color; |
| 5 double glass windows (three of them are opening); |
| Lockable door with double glazing hexagonal window; |
| 3 rooms: 6-corners cabin and 2 rectangular extensions; |
Camping Cabin 9.2 with two extensions
| Size of pallets (LxWxH) | 1: 3.80 x 1.2 x 2.55; 2: 2 x 1.2 x 2.55m |
| Weight | 170kg |
This Camping Cabin is delivered to the customer not assembled but fully complete, with detailed assembly instructions
and drawings, and packed on two pallets (KIT). The elements of the walls, floor, and roof are assembled into segments.
It is very important to have a proper base for your Camping Cabin. Therefore, we recommend following our sketches and consulting a qualified local builder or engineer. Making sure that the base for your product fits the location is of utmost importance.
Due to an improper base, the structure may crack. If the product is unevenly seated, the geometric shape of the building may change, which can result in the door/windows twisting, and/or gaps. In the worst-case scenario, the product may even collapse.
- Before building the base, make sure you take into account the landscape and the ground conditions on which the product will stand.
- The base under the product must be prepared specifically for the product.
- The base must be homogeneous, tight, and level.
- Make sure that the properties of the base do not change over time. We recommend making the base out of concrete and water-proofing it before installation.
If you do not follow recommendations for building the base, the product will lose its warranty!
AUTOMATIC MACHINE SPRAY TECHNOLOGY
Benefits
One of the main and most obvious benefits of using a paint machine is the speed and flexibility at which we can suggest our painting service for all of our products. A spray paint machine can get the work done faster and more consistently than manually painting. While the machine works faster, it improves quality too – sprayers produce an even coat of paint, leaving a high-quality finish.
With our painting service from now, we can suggest to our client maximum flexibility! Not assembled products such as Grill cabins, Pavilions, Camping pods, and other products of any size you can order painted too!
PROFESSIONAL SPRAY
The high-quality preservative finish is professionally spray applied in the factory to three sides of the wood. The product is treated in your choice of color. You can choose two colors for one product: one for almost all product details and another for finishing details.
STAIN | PAINT
Which type of paint should I Use?
Properly painting and impregnating is one of the most important things to consider when thinking about how to extend your product's lifetime.
Paint and natural wood finish instantly spruce up the aesthetics of your product.
The decision you will need to make is if you want to use a water-based wood stain or paint. Both will offer you UV protection. The wood stains will allow the texture of the
wood to show through and many are now available in a vast range of colors, however, paints will give you an intensive color, but will cover the grain and texture of the wood.
Available roof color
Black shingles
Green shingles
Red shinglesRoof Panel with Window for Camping Cabin
Clean tempered glass (the thickness of glass is 8 mm). Available from 1 to 3 units in Camping Cabin 9.2 with two extensions.
Tongue and Groove Floors for Camping Cabin (28 mm)
| Available |

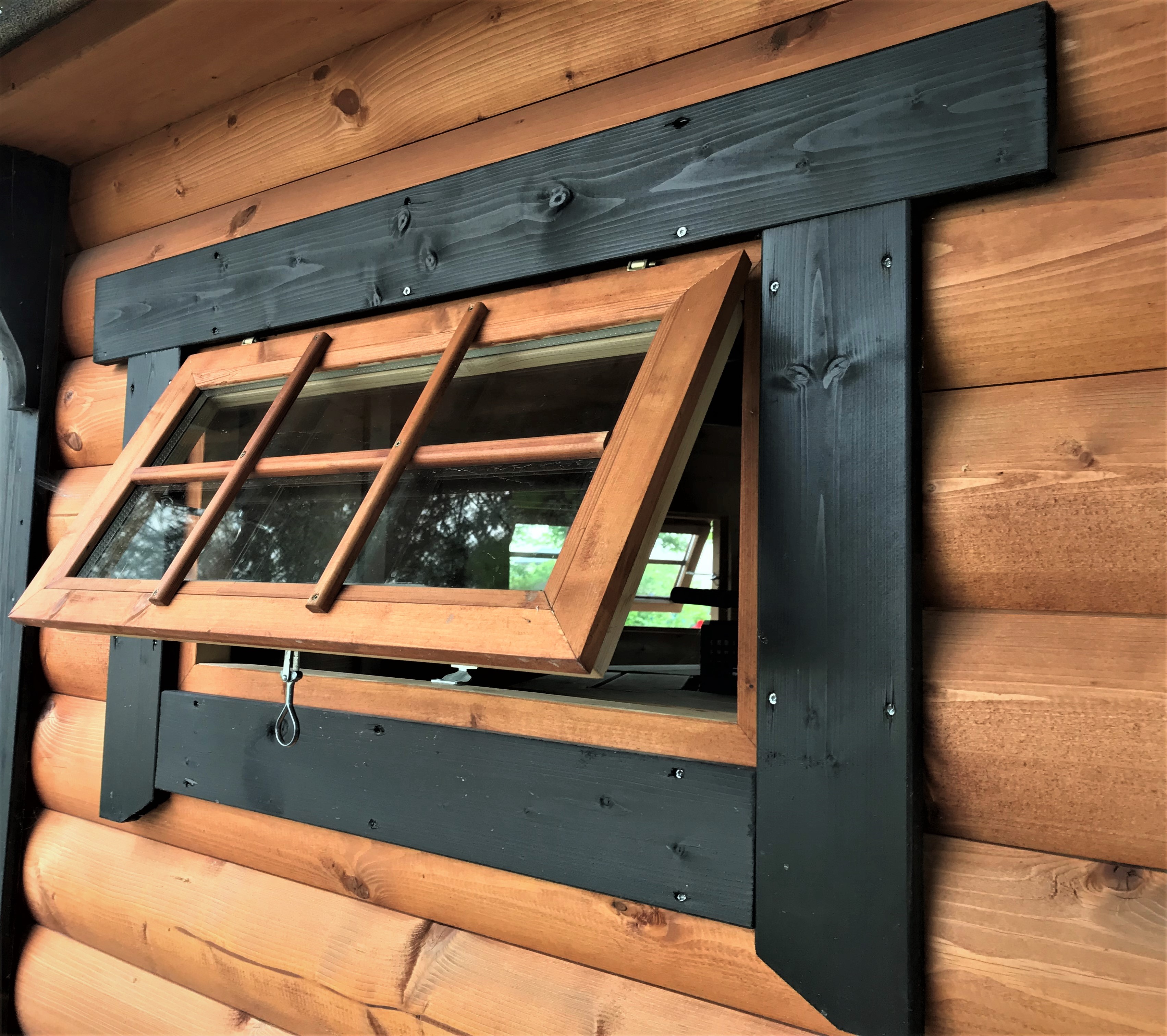

Opening windows for Camping Cabin 9.2 with 2 extensions
- 3 opening windows from 5 (standard);
- 4 opening windows from 5;
- 5 opening windows from 5;
Brown curtains set
Blue curtains set
Shelf for Camping Cabin
Reindeer hides
Flower Pot
Stainless steel door sill
Door stopper
Things to note when using the product:
- Products that are used for staying overnight should be equipped with a smoke alarm and an extinguisher;
- The product owner is responsible for the security and should work out a rescue plan for the camping site;
- Remember that using heating appliances or temporary camping stoves isn‘t just a fire risk, but a risk of carbon monoxide poisoning as well.
MAINTENANCE. You should not forget that wood is a natural material, it changes move depending on weather conditions. Large and small cracks, color tone differences and changes, as well as a changing structure of wood are not errors, but a result of wood growing and a feature of wood as a natural material. Natural wood (not impregnated) becomes greyish after having been left untouched for a while and can be turned blue and become mouldy. You should immediately process them with wood impregnations to protect the wooden details of our produced products.
- Like any our product, our produced furniture’s needs to be looked after and processed with a wood impregnation agent or painted if you want it to last for years. Regular cleaning of your furniture is necessary to prevent mould. General warm soapy water is enough if done regularly;
- If necessary, outside doors must be adjusted by the customer;
- If you do not use your Camping Product often we highly recommend to use the installation of our vent to stop condensation;
- If you find a sap pocket open during the life of your Product - you can allow it to dry naturally and then cut the sap off with a blade.
