Product description
FRAMES (insulated)
Insulated Garden cube frame from spruce: insulated floor and roof panels, 4 columns. Insulation - stone wool (50 mm). The frames are made from glue-laminated spruce beams. The frame consists of a bottom frame (100 x 140 mm), columns (140 x 140 mm), and a top frame (140 x 200 mm). The floor is made of a 146 x 28 mm floorboard. The floor and roof of our cubes are all insulated to lower energy costs.
We use stone wool to insulate our cubes for these reasons: fire resilience, thermal properties, acoustic capabilities, durability, aesthetics, water properties, and circularity.

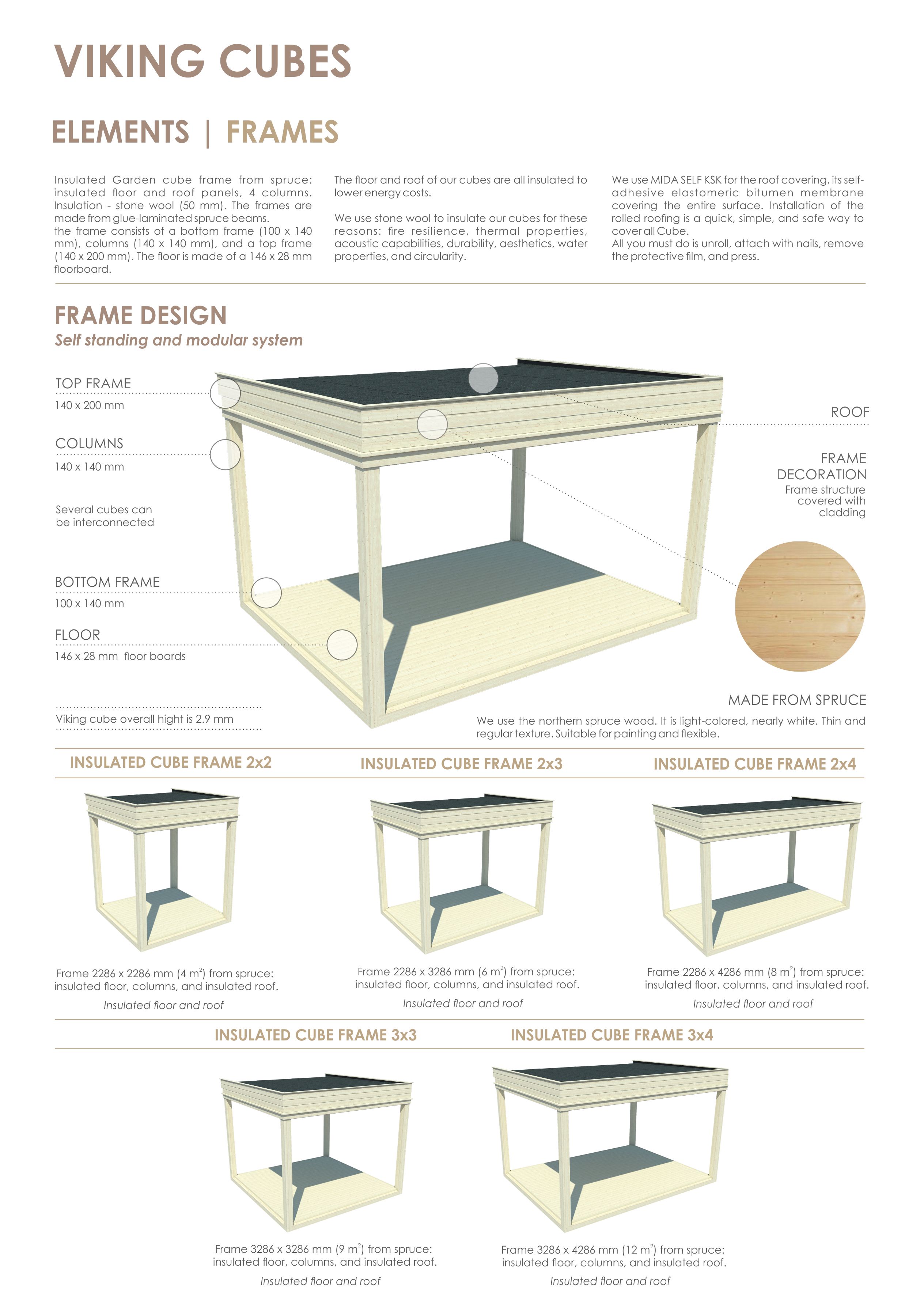

FRAME DESIGN. Self-standing and modular system cube specifications
- TOP FRAME 140 x 200 mm
- COLUMNS 140 x 140 mm
- BOTTOM FRAME 100 x 140 mm
- FLOOR 146 x 28 mm floorboards
- INSULATION 50 mm stone wool
AVAILABLE CUBE FRAME SIZES:
- CUBE FRAME 2 x 2 m. Frame 2286 x 2286 (4 m2) from spruce: insulated floor, columns, and insulated roof.
- CUBE FRAME 2 x 3 m. Frame 2286 x 3286 (6 m2) from spruce: insulated floor, columns, and insulated roof.
- CUBE FRAME 2 x 4 m. Frame 2286 x 4286 (8 m2) from spruce: insulated floor, columns, and insulated roof.
- CUBE FRAME 3 x 3 m. Frame 3286 x 3286 (9 m2) from spruce: insulated floor, columns, and insulated roof.
- CUBE FRAME 3 x 4 m. Frame 3286 x 4286 (12 m2) from spruce: insulated floor, columns, and insulated roof.
Several cubes can be interconnected.
| People | 2-3persons |
| Timber | Spruce |
| Room | 1 |
| Total height | 2900mm |
| Floor thickness | 28mm |
| Insulation | 50mm stone wool |
| Garden cube frame from spruce: floor and roof panels, 4 columns. |
| Insulation - stone wool (50 mm). |
| The frames are made from glue laminated spruce beams. |
| Frame consists of bottom frame (100 x 140 mm), columns (140 x 140 mm), top frame (140 x 200 mm). |
| Roof panels with self-adhesive bitumen membrane. |
| The floor is made of 146 x 28 mm floor board. |
| Built with 45 x 95 mm joists. |
Viking Modular Garden Cubes
Size of the cargo (L x W x H): not assembled products on pallets ready for transportation:
- CUBE FRAME 2 x 2 m: 2.60 x 1.20 x 2.60 m.
- CUBE FRAME 2 x 3 m: 3.40 x 1.20 x 2.60 m.
- CUBE FRAME 2 x 4 m: 4.40 x 1.20 x 2.60 m.
- CUBE FRAME 3 x 3 m: 3.40 x 1.20 x 2.60 m.
- CUBE FRAME 3 x 4 m: 4.40 x 1.20 x 2.60 m.
AUTOMATIC MACHINE SPRAY TECHNOLOGY
Benefits
One of the main and most obvious benefits of using a paint machine is the speed and flexibility at which we can suggest our painting service for all of our products. A spray paint machine can get the work done faster and more consistently than manually painting. While the machine works faster, it improves quality too – sprayers produce an even coat of paint, leaving a high-quality finish.
With our painting service from now, we can suggest to our client maximum flexibility! Not assembled products such as Grill cabins, Pavilions, Camping pods, and other products of any size you can order painted too!
PROFESSIONAL SPRAY
The high-quality preservative finish is professionally spray applied in the factory to three sides of the wood. The product is treated in your choice of color. You can choose two colors for one product: one for almost all product details and another for finishing details.
STAIN | PAINT
Which type of paint should I Use?
Properly painting and impregnating is one of the most important things to consider when thinking about how to extend your product's lifetime.
Paint and natural wood finish instantly spruce up the aesthetics of your product.
The decision you will need to make is if you want to use a water-based wood stain or paint. Both will offer you UV protection. The wood stains will allow the texture of the
wood to show through and many are now available in a vast range of colors, however, paints will give you an intensive color, but will cover the grain and texture of the wood.
Things to note when using the product:
- Products that are used for staying overnight should be equipped with a smoke alarm and an extinguisher;
- The product owner is responsible for the security and should work out a rescue plan for the camping site;
- Remember that using heating appliances or temporary camping stoves isn‘t just a fire risk, but a risk of carbon monoxide poisoning as well.
MAINTENANCE. You should not forget that wood is a natural material, it changes move depending on weather conditions. Large and small cracks, color tone differences and changes, as well as a changing structure of wood are not errors, but a result of wood growing and a feature of wood as a natural material. Natural wood (not impregnated) becomes greyish after having been left untouched for a while and can be turned blue and become mouldy. You should immediately process them with wood impregnations to protect the wooden details of our produced products.
- Like any our product, our produced furniture’s needs to be looked after and processed with a wood impregnation agent or painted if you want it to last for years. Regular cleaning of your furniture is necessary to prevent mould. General warm soapy water is enough if done regularly;
- If necessary, outside doors must be adjusted by the customer;
- If you do not use your Product often we highly recommend to use the installation of our vent to stop condensation;
- If you find a sap pocket open during the life of your Product - you can allow it to dry naturally and then cut the sap off with a blade.
