Product description
This outdoor Sauna Barrel Ø2.2 X 2.5 M for 2 to 4 persons which stands out not merely because of its look. The round shape makes the hot air circulate perfectly and so ensures an extremely comfortable sauna experience.
What's more, thanks to its unique round shape, less space needs to heat up!
Sauna Barrels are easy to install anywhere. They are delivered assembled or in packages that can pass through any door or entrance.

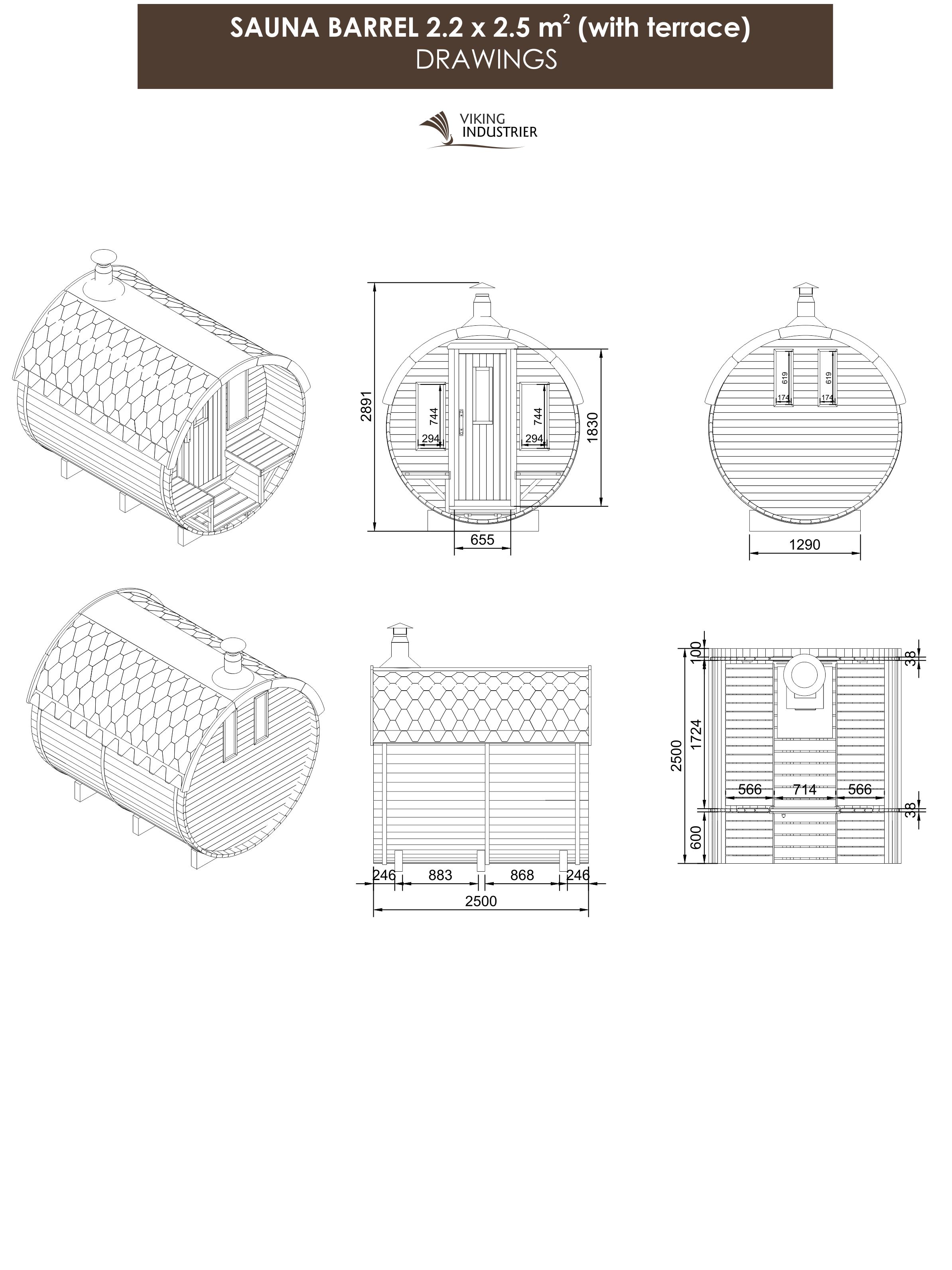

Also, there are 2 layout options for this sauna barrel: with or without 0.60 m the terrace, which means shorter (1.72 m) or longer (2.22 m) sauna room.
Choice of accessories such as headrests, sauna lights, wooden buckets, and more.
- Specification
- Standard set
- Delivery

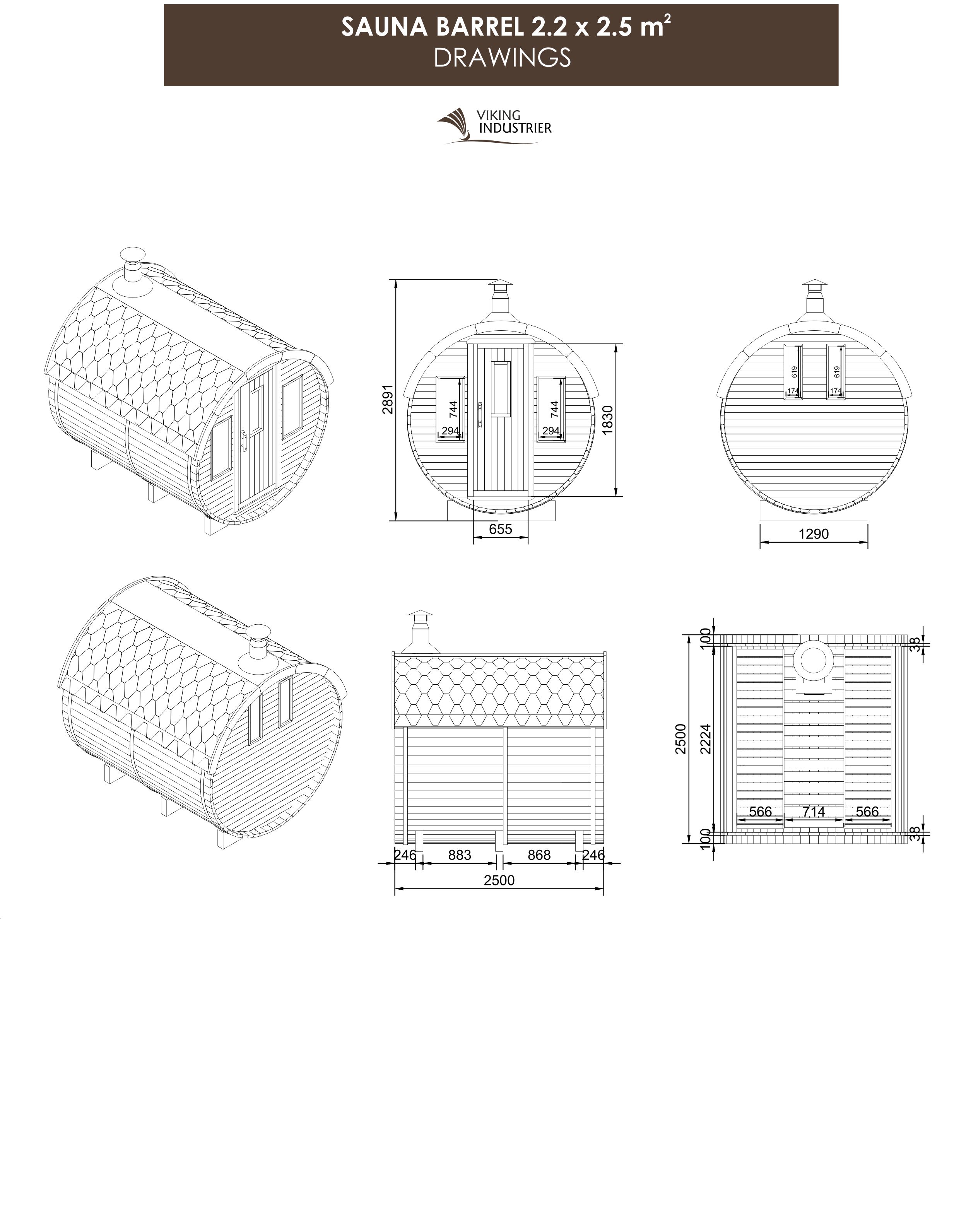

- Drawings
- Foundation
- Painting
- Heater and Chimney Kit
- Options
- Accessories
- Usage and Maintenance
| People | 2-4persons |
| Timber | Spruce |
| Shape | Round |
| Room | 1 |
| Diameter | 2200mm |
| Total height | 2400mm |
| Floor thickness | 18mm |
| Wall thickness | 38mm |
| External dimension | 2237 x 2500mm |
| Door size | 690 x 180mm |
| Window size | 213 x 665mm |
| Terrace | 600mm |
| Sauna barrel from spruce; |
| Roof covered with bitumen shingles of your selected color; |
| Stainless steel tightening bands; |
| 2 tempered glass windows in the back wall (brown); |
| Door with a lock and a tempered glass window; |
| Sauna benches; |
| Heat-resistant plates for the heater/stove. |
| Assembling time | 8hours |
| Size of pallets (LxWxH) | 2.50 x 1.20 x 1.30 m |
The sauna is delivered to a customer fully assembled or not-assembled, but fully complete, with detailed assembly instructions and drawings, and packed on a pallet (KIT)*. Two people can easily assemble this sauna barrel in 8 hours.
- Size of a assembled cargo (L x W x H): 2.5 x 2.4 x 2.5 m.
- Size of a KIT (L x W x H): 2.50 x 1.20 x 1.30 m.
*Comment: sauna barrels with the glass back wall are delivered only fully assembled.
It is very important to have a proper base for your Sauna Barrel. Therefore, we recommend following our sketches and consulting a qualified local builder or engineer. Making sure that the base for your product fits the location is of utmost importance.
Due to an improper base, the structure may crack. If the product is unevenly seated, the geometric shape of the building may change, which can result in the door/windows twisting, and/or gaps. In the worst-case scenario, the product may even collapse.
- Before building the base, make sure you take into account the landscape and the ground conditions on which the product will stand.
- The base under the product must be prepared specifically for the product.
- The base must be homogeneous, tight and level.
- Make sure that the properties of the base do not change over time. We recommend making the base out of concrete and water-proofing it before installation.
If you do not follow recommendations for building the base, the product will lose its warranty!
AUTOMATIC MACHINE SPRAY TECHNOLOGY
Benefits
One of the main and most obvious benefits of using a paint machine is the speed and flexibility at which we can suggest our painting service for all of our products. A spray paint machine can get the work done faster and more consistently than manually painting. While the machine works faster, it improves quality too – sprayers produce an even coat of paint, leaving a high-quality finish.
With our painting service from now, we can suggest to our client maximum flexibility! Not assembled products such as Grill cabins, Pavilions, Camping pods, and other products of any size you can order painted too!
PROFESSIONAL SPRAY
The high-quality preservative finish is professionally spray applied in the factory to three sides of the wood. The product is treated in your choice of color. You can choose two colors for one product: one for almost all product details and another for finishing details.
STAIN | PAINT
Which type of paint should I Use?
Properly painting and impregnating is one of the most important things to consider when thinking about how to extend your product's lifetime.
Paint and natural wood finish instantly spruce up the aesthetics of your product.
The decision you will need to make is if you want to use a water-based wood stain or paint. Both will offer you UV protection. The wood stains will allow the texture of the
wood to show through and many are now available in a vast range of colors, however, paints will give you an intensive color, but will cover the grain and texture of the wood.
Electric heater Harvia Leged PO11, 11kW + Harvia Xenio CX170 (9-20m3)
Electric heater Harvia Trendi KIP90, 9 kw (8 -14 m3)
Electric heater Harvia Vega BC60, 6 kW (5-8 m3)
Electric heater Harvia Vega BC80, 8 kW (7-12 m3)
Harvia Cilindro PC90XE, 9kW + Harvia Xenio CX001 (8-14m3)
Wood burning heater Harvia M3 SL (outside feeding), 16.5 kw (6-13 m3)
Wood burning heater Harvia M3, 16.5 kw (6-13 m3)
Wood burning heater Harvia Pro 20, 24 kw (8-20 m3)
Wood burning heater Harvia SL 20 (outside feeding), 24.1 kw (8-20 m3)
Thickness Of The Side Boards
- 38 mm boards from spruce (standard)
- 58 mm boards from spruce (available)
- 38 mm boards from thermowood (available)
Available roof color
Black shingles
Green shingles
Red shinglesAvailable Windows For Back Wall In Sauna Barrel Ø2.2

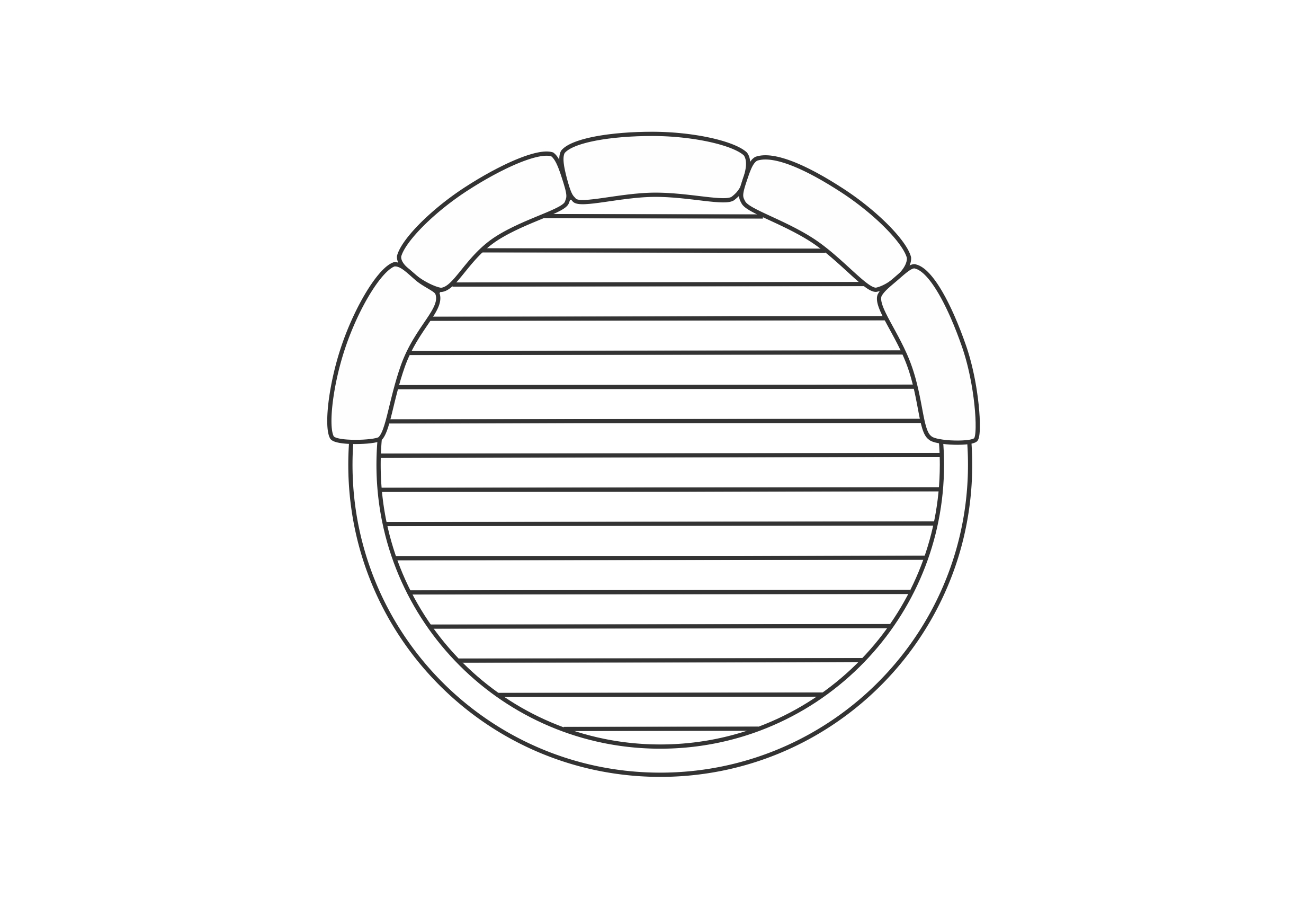

- Full back wall from wood. Available for all Sauna Barrels

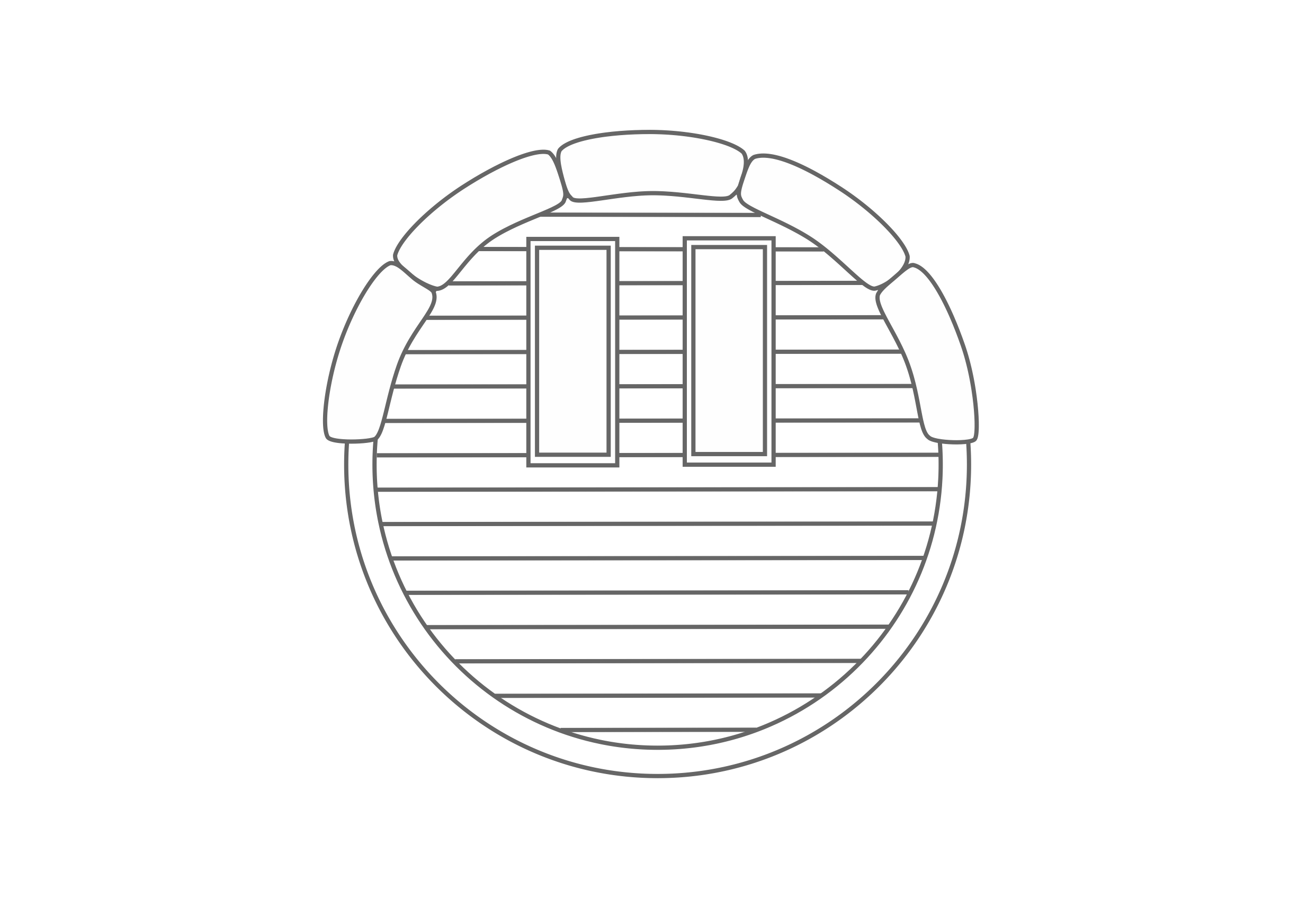

- Two rectangular windows in back wall. Window size is 213 x 665 mm. Available for all Sauna Barrels

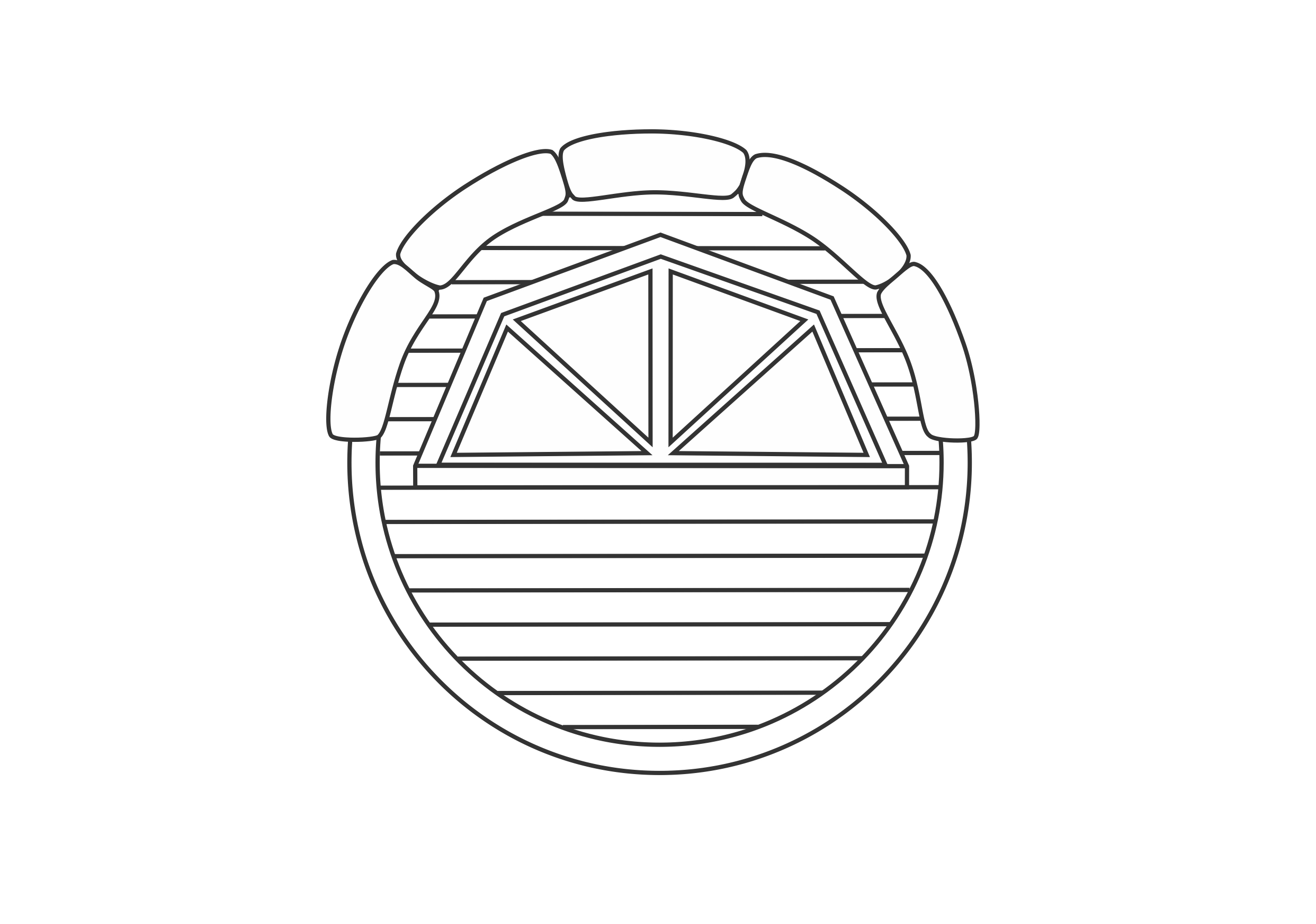

- Decorative window in back wall. Only for Ø 2.2 m Sauna Barrels.

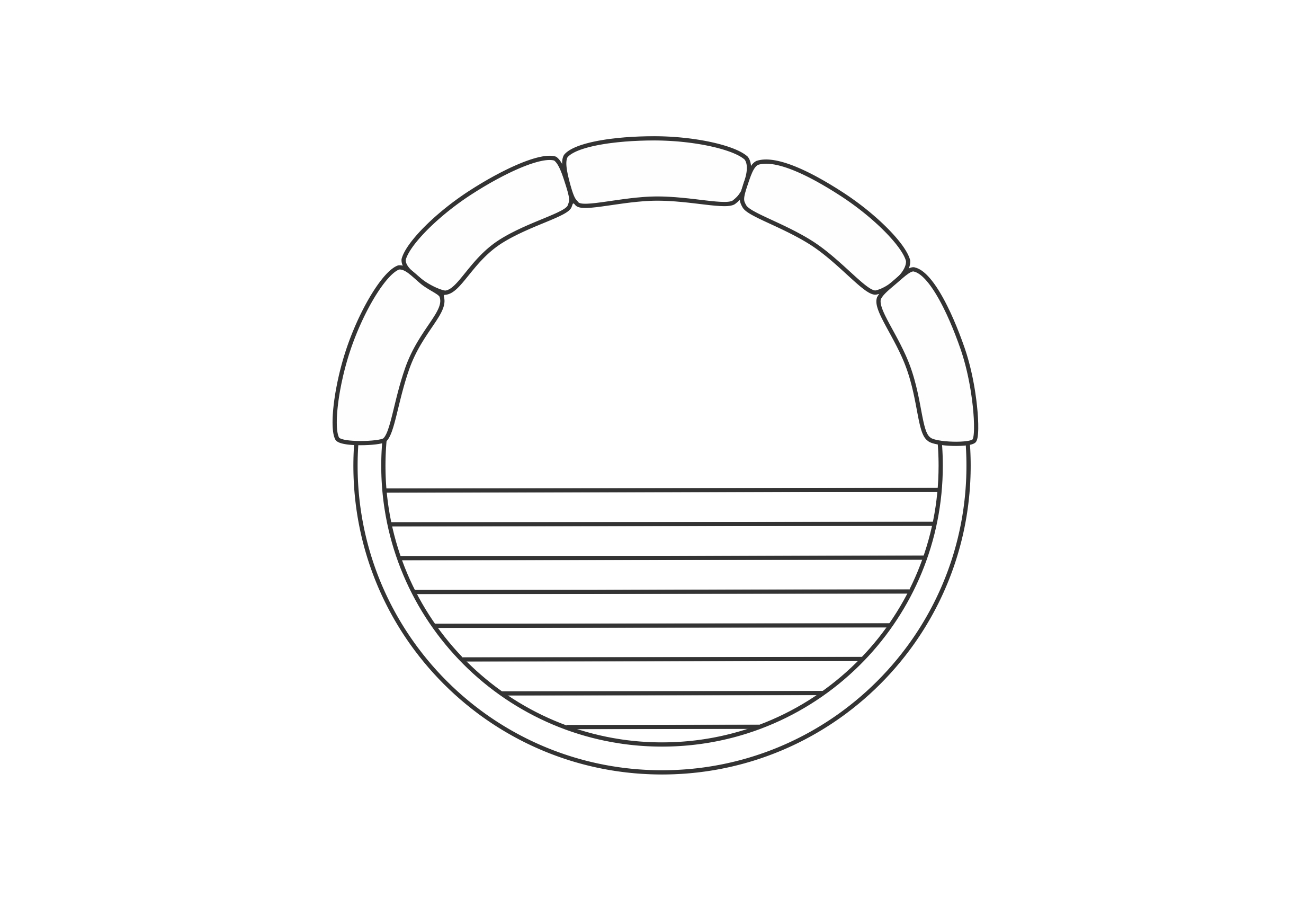

- Half glass back wall. Available for Ø1.9 m and Ø 2.2 m Sauna Barrels

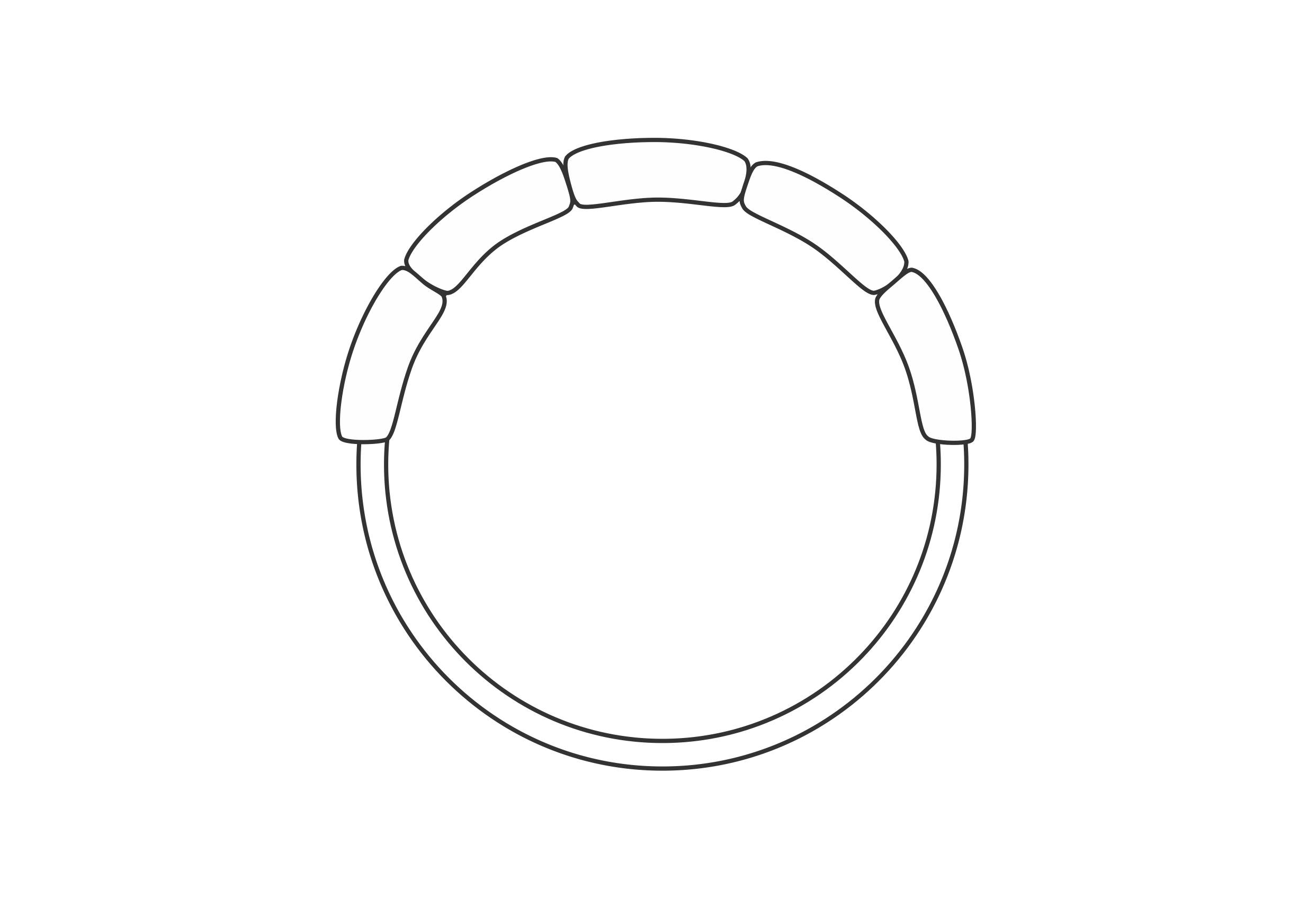

- Full glass back wall. Available for Ø1.9 m and Ø 2.2 m Sauna Barrels*
*Sauna Barrel with full glass back wall is delivered only assembled.
Available Front Windows in Sauna Barrels
- Front wall without windows (standard);
- Front wall with two tempered glass windows.
Available Front Door For Sauna Barrels
- Standard wooden door with tempered glass window;
- Wooden door with large rectangular tempered glass window;
- Tempered glass door.
LED lighting (outside, inside)
OUTSIDE LIGHTING.
LED strips are used on the outside of the sauna:
Under the roof ridge
On the sides of the front door
INSIDE LIGHTING.
LED strips are used inside of the sauna room*:
Under the sauna benches (on both sides)
Under the backrests (both sides)**
*If a Sauna layout is with a changing room, LED strips are used under the benches and backrests too.
**Modern-looking backrests are included in the price.
Outside lighting
Inside lighting
Back Rest for Sauna
Head Rest
Clothes Hanger
Sauna Light
Sauna Light Cover
Thermometer - Hydrometer
Water Tank For Woodburning Heaters
Heater Safety Fence for Woodburning Heaters
Heater Safety Fence for Electric Heaters
Wooden Bucket
Wooden Ladle
Bucket + Ladle Duo (White)
The Bucket + Ladle duo (Black)
Stainless steel door sill
USING YOUR SAUNA
PREPARING YOUR SAUNA FOR USE.
- If you have wood burning heater, make sure to remove the protective film of the heater chimney before heating.
- Check the Sauna before heating. No flammable objects must be left on or near the heater.
- Check that there is water in the water tank (if you are using it).
- Ensure that the Sauna door is unlocked and easy to open before using it. If necessary, sauna door must be adjusted by the customer.
- Do not mount any additional accessories or shelves above the heater.
- Turn the Sauna heater on.
- The thermometer should be located at head level in the Sauna. It should be further away from the heater, so it does not give a false reading.
- Wait for the Sauna to reach the required temperature (normally 80-90º C).
All users should be aware of the potential dangers and requirements prior to participation in the Sauna!
THINGS TO NOTE WHEN USING THE SAUNA
Enjoy the many health benefits of the relaxing heat of your Sauna. But remember: being inside the hot Sauna for long periods of time raises your body temperature, which may be dangerous, especially for those with a heart condition or other health risks. Generally, the
recommended time inside a Sauna is from 10 to 15 minutes. After a period of heating, take a 5 minute break and then repeat. Also:
- Familiarize yourself with the safety instructions and keep away from the heater when it is hot.
- Be very careful when moving in the Sauna, as the benches and floors may be slippery!
- The Sauna should not be used by pregnant women or very young children.
- Remove all jewelry before entering the hot Sauna.
MAINTENANCE
Wood is a natural material and can change through time. Cracks of various sizes, structural or color changes are not the defects – rather, they are features of the wood. Natural wood (not impregnated) becomes grayish after being left untouched for a while. Later it can turn
blue and get covered with mold.
- Impregnate and paint the wood to protect the product from outside. We recommend to inspect Sauna every 6 month and evaluate need of re-impregnation, re-painintg.
- When not in use, keep a bucket full of water in the Sauna during summer.
- Doors of the Sauna must be adjusted regulary.
- You should keep the sauna ventilation open all the time, to allow it time to dry and air out to avoid mold.
- To remove bench stains, use a mild soapy water and a soft cotton cloth. This can also be used on the heater itself - just make sure it's off and completely cool when you clean it.
- Don't use harsh or abrasive chemicals on benches, as these can bleach and warp the wood, ruining the grain and turning it grey.
With these simple maintenance tips your Sauna will stay inviting, fresh, and enjoyable!
